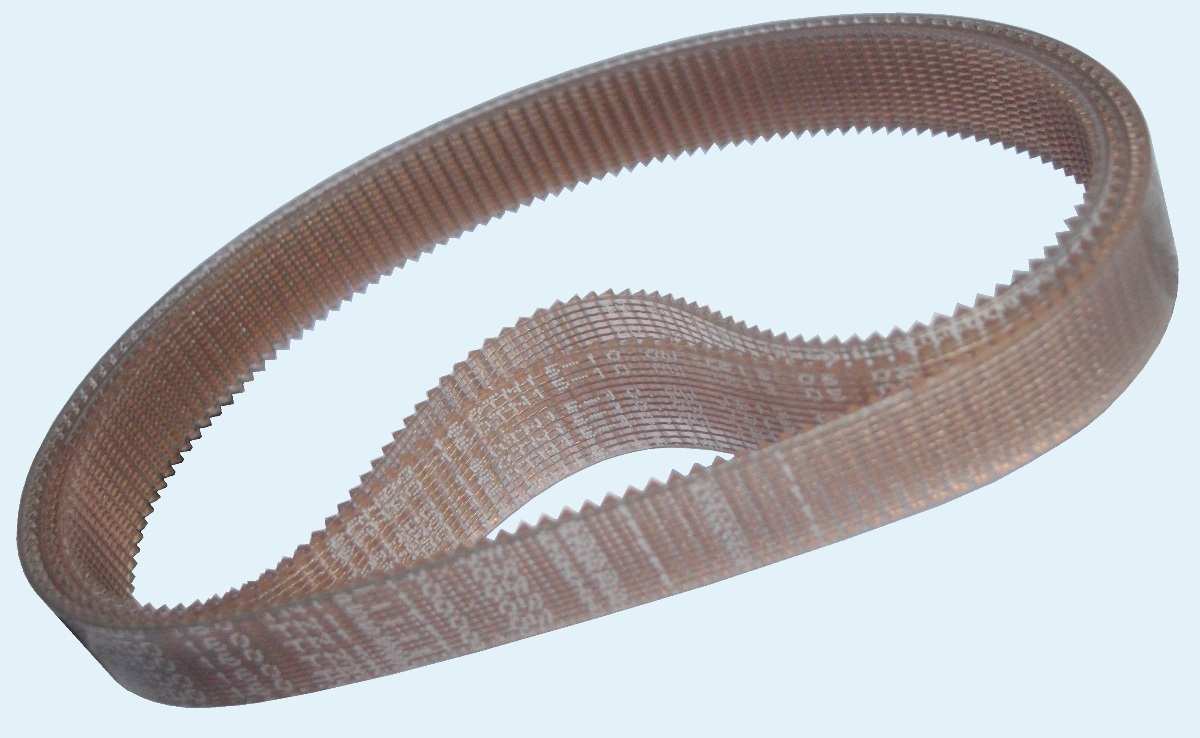

Зубчастий пас Bando TN10, TN15

Ремень TN15 Bando

Поліуретанові зубчасті паси для побутової техніки та приладів Bando TN10 TN15 Bancollan (TN type synchronous belt). Один з рідновидів зубчастих пасів, мають три варіанта корда: металевий, кевларовий, поліестеровий.

Зубчатые полиуретановые ремни для приборов и бытовой техники Bando TN10 TN15, серия Bancollan (TN type synchronous belt). Являются одной из разновидностей зубчатых ремней, имеют три варианта корда: металлический, кевларовый, полиэстеровый. Ремни имеют треугольный зуб и предназначены для использования в бытовых приборах (принтеры, сканеры, видеомагнитофоны) и в различных приборах.

Ремень TN15 TN10

Тип ремня	Р, шаг ремня, мм.	Н1, высота ремня, мм	Н2, высота зуба, мм
TN10	1.00	0.85	0.44
TN15	1.50	1.3	0.7

Маркування зубчастого паса TN побудована наступним чином:

82 TN15 5.0 K

де:

82 - кількість зубів паса
TN15 - профіль та крок зуба
5.0 - ширина паса в міллиметрах
K - матеріал корда (К - кевлар (поліарамід), W - сталевий корд, T - поліестер)

Зубчасті паси Bando TN15 мають наступні розміри та маркування:

зуби	Довж.	ширина, мм
Z	мм	3,0	5,0	7,0	10,0	13,0
25	37.5	25 TN15-3.0K 25 TN15-3.0T	25TN15-5.0K 25TN15-5.0T	25TN15-7.0K 25TN15-7.0T	25TN15-10.0K 25TN15-10.0T	25TN15-13.0K 25TN15-13.0T
43	64.5	43 TN15-3.0K 43 TN15-3.0T	43TN15-5.0K 43TN15-5.0T	43TN15-8.0K 43TN15-7.0T	43TN15-10.0K 43TN15-10.0T	43TN15-13.0K 43TN15-13.0T
50	75	50 TN15-3.0K 50 TN15-3.0T	50TN15-5.0K 50TN15-5.0T	50TN15-7.0K 50TN15-7.0T	50TN15-10.0K 50TN15-10.0T	50TN15-13.0K 50TN15-13.0T
60	90	60 TN15-3.0K 60 TN15-3.0T	60TN15-5.0K 60TN15-5.0T	60TN15-7.0K 60TN15-7.0T	60TN15-10.0K 60TN15-10.0T	60TN15-13.0K 60TN15-13.0T
63	94.5	63 TN15-3.0K 63 TN15-3.0T	63TN15-5.0K 63TN15-5.0T	63TN15-7.0K 63TN15-7.0T	63TN15-10.0K 63TN15-10.0T	63TN15-13.0K 63TN15-13.0T
79	118.5	79 TN15-3.0K 79 TN15-3.0T 79 TN15-3.0W	79TN15-5.0K 79TN15-5.0T 79TN15-5.0W	79TN15-7.0K 79TN15-7.0T 79TN15-7.0W	79TN15-10.0K 79TN15-10.0T 79TN15-10.0W	79TN15-13.0K 79TN15-13.0T 79TN15-13.0W
82	123	82 TN15-3.0K 82 TN15-3.0T 82 TN15-3.0W	82TN15-5.0K 82TN15-5.0T 82TN15-5.0W	82TN15-7.0K 82TN15-7.0T 82TN15-7.0W	82TN15-10.0K 82TN15-10.0T 82TN15-10.0W	82TN15-13.0K 82TN15-13.0T 82TN15-13.0W
100	150	100 TN15-3.0K 100 TN15-3.0T 100 TN15-3.0W	100TN15-5.0K 100TN15-5.0T 100TN15-5.0W	100TN15-7.0K 100TN15-7.0T 100TN15-7.0W	100TN15-10.0K 100TN15-10.0T 100TN15-10.0W	100TN15-13.0K 100TN15-13.0T 100TN15-13.0W
110	165	110 TN15-3.0K 110 TN15-3.0T 110 TN15-3.0W	110TN15-5.0K 110TN15-5.0T 110TN15-5.0W	110TN15-7.0K 110TN15-7.0T 110TN15-7.0W	110TN15-10.0K 110TN15-10.0T 110TN15-10.0W	110TN15-13.0K 110TN15-13.0T 110TN15-13.0W
114	171	114 TN15-3.0K 114 TN15-3.0T 114 TN15-3.0W	114TN15-5.0K 114TN15-5.0T 114TN15-5.0W	114TN15-7.0K 114TN15-7.0T 114TN15-7.0W	114TN15-10.0K 114TN15-10.0T 114TN15-10.0W	114TN15-13.0K 114TN15-13.0T 114TN15-13.0W
120	180	120 TN15-3.0K 120 TN15-3.0T 120 TN15-3.0W	120TN15-5.0K 120TN15-5.0T 120TN15-5.0W	120TN15-7.0K 120TN15-7.0T 120TN15-7.0W	120TN15-10.0K 120TN15-10.0T 120TN15-10.0W	120TN15-13.0K 120TN15-13.0T 120TN15-13.0W
129	193,5	129 TN15-3.0K 129 TN15-3.0T 129 TN15-3.0W	129TN15-5.0K 129TN15-5.0T 129TN15-5.0W	129TN15-7.0K 129TN15-7.0T 129TN15-7.0W	129TN15-10.0K 129TN15-10.0T 129TN15-10.0W	129TN15-13.0K 129TN15-13.0T 129TN15-13.0W
130	195	130 TN15-3.0K 130 TN15-3.0T 130 TN15-3.0W	130TN15-5.0K 130TN15-5.0T 130TN15-5.0W	130TN15-7.0K 130TN15-7.0T 130TN15-7.0W	130TN15-10.0K 130TN15-10.0T 130TN15-10.0W	130TN15-13.0K 130TN15-13.0T 130TN15-13.0W
131	196,5	131 TN15-3.0K 131 TN15-3.0T 131 TN15-3.0W	131TN15-5.0K 131TN15-5.0T 131TN15-5.0W	131TN15-7.0K 131TN15-7.0T 131TN15-7.0W	131TN15-10.0K 131TN15-10.0T 131TN15-10.0W	131TN15-13.0K 131TN15-13.0T 131TN15-13.0W
140	210	140 TN15-3.0K 140 TN15-3.0T 140 TN15-3.0W	140TN15-5.0K 140TN15-5.0T 140TN15-5.0W	140TN15-7.0K 140TN15-7.0T 140TN15-7.0W	140TN15-10.0K 140TN15-10.0T 140TN15-10.0W	140TN15-13.0K 140TN15-13.0T 140TN15-13.0W
150	225	150 TN15-3.0K 150 TN15-3.0T 150 TN15-3.0W	150TN15-5.0K 150TN15-5.0T 150TN15-5.0W	150TN15-7.0K 150TN15-7.0T 150TN15-7.0W	150TN15-10.0K 150TN15-10.0T 150TN15-10.0W	150TN15-13.0K 150TN15-13.0T 150TN15-13.0W
157	235,5	157 TN15-3.0K 157 TN15-3.0T 157 TN15-3.0W	157TN15-5.0K 157TN15-5.0T 157TN15-5.0W	157TN15-7.0K 157TN15-7.0T 157TN15-7.0W	157TN15-10.0K 157TN15-10.0T 157TN15-10.0W	157TN15-13.0K 157TN15-13.0T 157TN15-13.0W
160	240	160 TN15-3.0K 160 TN15-3.0T 160 TN15-3.0W	160TN15-5.0K 160TN15-5.0T 160TN15-5.0W	160TN15-7.0K 160TN15-7.0T 160TN15-7.0W	160TN15-10.0K 160TN15-10.0T 160TN15-10.0W	160TN15-13.0K 160TN15-13.0T 160TN15-13.0W
170	255	170 TN15-3.0K 170 TN15-3.0T 170 TN15-3.0W	170TN15-5.0K 170TN15-5.0T 170TN15-5.0W	170TN15-7.0K 170TN15-7.0T 170TN15-7.0W	170TN15-10.0K 170TN15-10.0T 170TN15-10.0W	170TN15-13.0K 170TN15-13.0T 170TN15-13.0W
180	270	180 TN15-3.0K 180 TN15-3.0T 180 TN15-3.0W	180TN15-5.0K 180TN15-5.0T 180TN15-5.0W	180TN15-7.0K 180TN15-7.0T 180TN15-7.0W	180TN15-10.0K 180TN15-10.0T 180TN15-10.0W	180TN15-13.0K 180TN15-13.0T 180TN15-13.0W
186	279	186 TN15-3.0K 186 TN15-3.0T 186 TN15-3.0W	186TN15-5.0K 186TN15-5.0T 186TN15-5.0W	186TN15-7.0K 186TN15-7.0T 186TN15-7.0W	186TN15-10.0K 186TN15-10.0T 186TN15-10.0W	186TN15-13.0K 186TN15-13.0T 186TN15-13.0W
190	285	190 TN15-3.0K 190 TN15-3.0T 190 TN15-3.0W	190TN15-5.0K 190TN15-5.0T 190TN15-5.0W	190TN15-7.0K 190TN15-7.0T 190TN15-7.0W	190TN15-10.0K 190TN15-10.0T 190TN15-10.0W	190TN15-13.0K 190TN15-13.0T 190TN15-13.0W
192	288	192 TN15-3.0K 192 TN15-3.0T 192 TN15-3.0W	192TN15-5.0K 192TN15-5.0T 192TN15-5.0W	192TN15-7.0K 192TN15-7.0T 192TN15-7.0W	192TN15-10.0K 192TN15-10.0T 192TN15-10.0W	192TN15-13.0K 192TN15-13.0T 192TN15-13.0W
196	294	196 TN15-3.0K 196 TN15-3.0T 196 TN15-3.0W	196TN15-5.0K 196TN15-5.0T 196TN15-5.0W	196TN15-7.0K 196TN15-7.0T 196TN15-7.0W	196TN15-10.0K 196TN15-10.0T 196TN15-10.0W	196TN15-13.0K 196TN15-13.0T 196TN15-13.0W
200	300	200 TN15-3.0K 200 TN15-3.0T 200 TN15-3.0W	200TN15-5.0K 200TN15-5.0T 200TN15-5.0W	200TN15-7.0K 200TN15-7.0T 200TN15-7.0W	200TN15-10.0K 200TN15-10.0T 200TN15-10.0W	200TN15-13.0K 200TN15-13.0T 200TN15-13.0W
220	330	220 TN15-3.0K 220 TN15-3.0T 220 TN15-3.0W	220TN15-5.0K 220TN15-5.0T 220TN15-5.0W	220TN15-7.0K 220TN15-7.0T 220TN15-7.0W	220TN15-10.0K 220TN15-10.0T 220TN15-10.0W	220TN15-13.0K 220TN15-13.0T 220TN15-13.0W
230	345	230 TN15-3.0K 230 TN15-3.0T 230 TN15-3.0W	230TN15-5.0K 230TN15-5.0T 230TN15-5.0W	230TN15-7.0K 230TN15-7.0T 230TN15-7.0W	230TN15-10.0K 230TN15-10.0T 230TN15-10.0W	230TN15-13.0K 230TN15-13.0T 230TN15-13.0W
240	360	240 TN15-3.0K 240 TN15-3.0T 240 TN15-3.0W	240TN15-5.0K 240TN15-5.0T 240TN15-5.0W	240TN15-7.0K 240TN15-7.0T 240TN15-7.0W	240TN15-10.0K 240TN15-10.0T 240TN15-10.0W	240TN15-13.0K 240TN15-13.0T 240TN15-13.0W
250	375	250 TN15-3.0K 250 TN15-3.0T 250 TN15-3.0W	250TN15-5.0K 250TN15-5.0T 250TN15-5.0W	250TN15-7.0K 250TN15-7.0T 250TN15-7.0W	250TN15-10.0K 250TN15-10.0T 250TN15-10.0W	250TN15-13.0K 250TN15-13.0T 250TN15-13.0W
260	390	260 TN15-3.0K 260 TN15-3.0T 260 TN15-3.0W	260TN15-5.0K 260TN15-5.0T 260TN15-5.0W	260TN15-7.0K 260TN15-7.0T 260TN15-7.0W	260TN15-10.0K 260TN15-10.0T 260TN15-10.0W	260TN15-13.0K 260TN15-13.0T 260TN15-13.0W
270	405	270 TN15-3.0K 270 TN15-3.0T 270 TN15-3.0W	270TN15-5.0K 270TN15-5.0T 270TN15-5.0W	270TN15-7.0K 270TN15-7.0T 270TN15-7.0W	270TN15-10.0K 270TN15-10.0T 270TN15-10.0W	270TN15-13.0K 270TN15-13.0T 270TN15-13.0W
271	406,5	271 TN15-3.0K 271 TN15-3.0T 271 TN15-3.0W	271TN15-5.0K 271TN15-5.0T 271TN15-5.0W	271TN15-7.0K 271TN15-7.0T 271TN15-7.0W	271TN15-10.0K 271TN15-10.0T 271TN15-10.0W	271TN15-13.0K 271TN15-13.0T 271TN15-13.0W
290	435	290 TN15-3.0K 290 TN15-3.0T 290 TN15-3.0W	290TN15-5.0K 290TN15-5.0T 290TN15-5.0W	290TN15-7.0K 290TN15-7.0T 290TN15-7.0W	290TN15-10.0K 290TN15-10.0T 290TN15-10.0W	290TN15-13.0K 290TN15-13.0T 290TN15-13.0W
298	447	298 TN15-3.0K 298 TN15-3.0T 298 TN15-3.0W	298TN15-5.0K 298TN15-5.0T 298TN15-5.0W	298TN15-7.0K 298TN15-7.0T 298TN15-7.0W	298TN15-10.0K 298TN15-10.0T 298TN15-10.0W	298TN15-13.0K 298TN15-13.0T 298TN15-13.0W
300	450	300 TN15-3.0K 300 TN15-3.0T 300 TN15-3.0W	300TN15-5.0K 300TN15-5.0T 300TN15-5.0W	300TN15-7.0K 300TN15-7.0T 300TN15-7.0W	300TN15-10.0K 300TN15-10.0T 300TN15-10.0W	300TN15-13.0K 300TN15-13.0T 300TN15-13.0W
310	465	310 TN15-3.0K 310 TN15-3.0T 310 TN15-3.0W	310TN15-5.0K 310TN15-5.0T 310TN15-5.0W	310TN15-7.0K 310TN15-7.0T 310TN15-7.0W	310TN15-10.0K 310TN15-10.0T 310TN15-10.0W	310TN15-13.0K 310TN15-13.0T 310TN15-13.0W
320	480	320 TN15-3.0K 320 TN15-3.0T 320 TN15-3.0W	320TN15-5.0K 320TN15-5.0T 320TN15-5.0W	320TN15-7.0K 320TN15-7.0T 320TN15-7.0W	320TN15-10.0K 320TN15-10.0T 320TN15-10.0W	320TN15-13.0K 320TN15-13.0T 320TN15-13.0W
330	495	330 TN15-3.0K 330 TN15-3.0T 330 TN15-3.0W	330TN15-5.0K 330TN15-5.0T 330TN15-5.0W	330TN15-7.0K 330TN15-7.0T 330TN15-7.0W	330TN15-10.0K 330TN15-10.0T 330TN15-10.0W	330TN15-13.0K 330TN15-13.0T 330TN15-13.0W
334	501	334 TN15-3.0K 334 TN15-3.0T 334 TN15-3.0W	334TN15-5.0K 334TN15-5.0T 334TN15-5.0W	334TN15-7.0K 334TN15-7.0T 334TN15-7.0W	334TN15-10.0K 334TN15-10.0T 334TN15-10.0W	334TN15-13.0K 334TN15-13.0T 334TN15-13.0W
339	508,5	339 TN15-3.0K 339 TN15-3.0T 339 TN15-3.0W	339TN15-5.0K 339TN15-5.0T 339TN15-5.0W	339TN15-7.0K 339TN15-7.0T 339TN15-7.0W	339TN15-10.0K 339TN15-10.0T 339TN15-10.0W	339TN15-13.0K 339TN15-13.0T 339TN15-13.0W
340	510	340 TN15-3.0K 340 TN15-3.0T 340 TN15-3.0W	340TN15-5.0K 340TN15-5.0T 340TN15-5.0W	340TN15-7.0K 340TN15-7.0T 340TN15-7.0W	340TN15-10.0K 340TN15-10.0T 340TN15-10.0W	340TN15-13.0K 340TN15-13.0T 340TN15-13.0W
350	525	350 TN15-3.0K 350 TN15-3.0T 350 TN15-3.0W	350TN15-5.0K 350TN15-5.0T 350TN15-5.0W	350TN15-7.0K 350TN15-7.0T 350TN15-7.0W	350TN15-10.0K 350TN15-10.0T 350TN15-10.0W	350TN15-13.0K 350TN15-13.0T 350TN15-13.0W
360	540	360 TN15-3.0K 360 TN15-3.0T 360 TN15-3.0W	360TN15-5.0K 360TN15-5.0T 360TN15-5.0W	360TN15-7.0K 360TN15-7.0T 360TN15-7.0W	360TN15-10.0K 360TN15-10.0T 360TN15-10.0W	360TN15-13.0K 360TN15-13.0T 360TN15-13.0W
370	555	370 TN15-3.0K 370 TN15-3.0T 370 TN15-3.0W	370TN15-5.0K 370TN15-5.0T 370TN15-5.0W	370TN15-7.0K 370TN15-7.0T 370TN15-7.0W	370TN15-10.0K 370TN15-10.0T 370TN15-10.0W	370TN15-13.0K 370TN15-13.0T 370TN15-13.0W
380	570	380 TN15-3.0K 380 TN15-3.0T 380 TN15-3.0W	380TN15-5.0K 380TN15-5.0T 380TN15-5.0W	380TN15-7.0K 380TN15-7.0T 380TN15-7.0W	380TN15-10.0K 380TN15-10.0T 380TN15-10.0W	380TN15-13.0K 380TN15-13.0T 380TN15-13.0W
390	585	390 TN15-3.0K 390 TN15-3.0T 390 TN15-3.0W	390TN15-5.0K 390TN15-5.0T 390TN15-5.0W	390TN15-7.0K 390TN15-7.0T 390TN15-7.0W	390TN15-10.0K 390TN15-10.0T 390TN15-10.0W	390TN15-13.0K 390TN15-13.0T 390TN15-13.0W
400	600	400 TN15-3.0K 400 TN15-3.0T 400 TN15-3.0W	400TN15-5.0K 400TN15-5.0T 400TN15-5.0W	400TN15-7.0K 400TN15-7.0T 400TN15-7.0W	400TN15-10.0K 400TN15-10.0T 400TN15-10.0W	400TN15-13.0K 400TN15-13.0T 400TN15-13.0W
421	631,5	421 TN15-3.0K 421 TN15-3.0T 421 TN15-3.0W	421TN15-5.0K 421TN15-5.0T 421TN15-5.0W	421TN15-7.0K 421TN15-7.0T 421TN15-7.0W	421TN15-10.0K 421TN15-10.0T 421TN15-10.0W	421TN15-13.0K 421TN15-13.0T 421TN15-13.0W
441	661,5	441 TN15-3.0K 441 TN15-3.0T 441 TN15-3.0W	441TN15-5.0K 441TN15-5.0T 441TN15-5.0W	441TN15-7.0K 441TN15-7.0T 441TN15-7.0W	441TN15-10.0K 441TN15-10.0T 441TN15-10.0W	441TN15-13.0K 441TN15-13.0T 441TN15-13.0W
460	690	460 TN15-3.0K 460 TN15-3.0T 460 TN15-3.0W	460TN15-5.0K 460TN15-5.0T 460TN15-5.0W	460TN15-7.0K 460TN15-7.0T 460TN15-7.0W	460TN15-10.0K 460TN15-10.0T 460TN15-10.0W	460TN15-13.0K 460TN15-13.0T 460TN15-13.0W
480	720	480 TN15-3.0K 480 TN15-3.0T 480 TN15-3.0W	480TN15-5.0K 480TN15-5.0T 480TN15-5.0W	480TN15-7.0K 480TN15-7.0T 480TN15-7.0W	480TN15-10.0K 480TN15-10.0T 480TN15-10.0W	480TN15-13.0K 480TN15-13.0T 480TN15-13.0W
481	721,5	481 TN15-3.0K 481 TN15-3.0T 481 TN15-3.0W	481TN15-5.0K 481TN15-5.0T 481TN15-5.0W	481TN15-7.0K 481TN15-7.0T 481TN15-7.0W	481TN15-10.0K 481TN15-10.0T 481TN15-10.0W	481TN15-13.0K 481TN15-13.0T 481TN15-13.0W
828	1242	828 TN15-3.0K 828 TN15-3.0T 828 TN15-3.0W	828TN15-5.0K 828TN15-5.0T 828TN15-5.0W	828TN15-7.0K 828TN15-7.0T 828TN15-7.0W	828TN15-10.0K 828TN15-10.0T 828TN15-10.0W	828TN15-13.0K 828TN15-13.0T 828TN15-13.0W
