УкраїнськаЧерв'ячний редуктор JRSTD75 (NMRV 075)

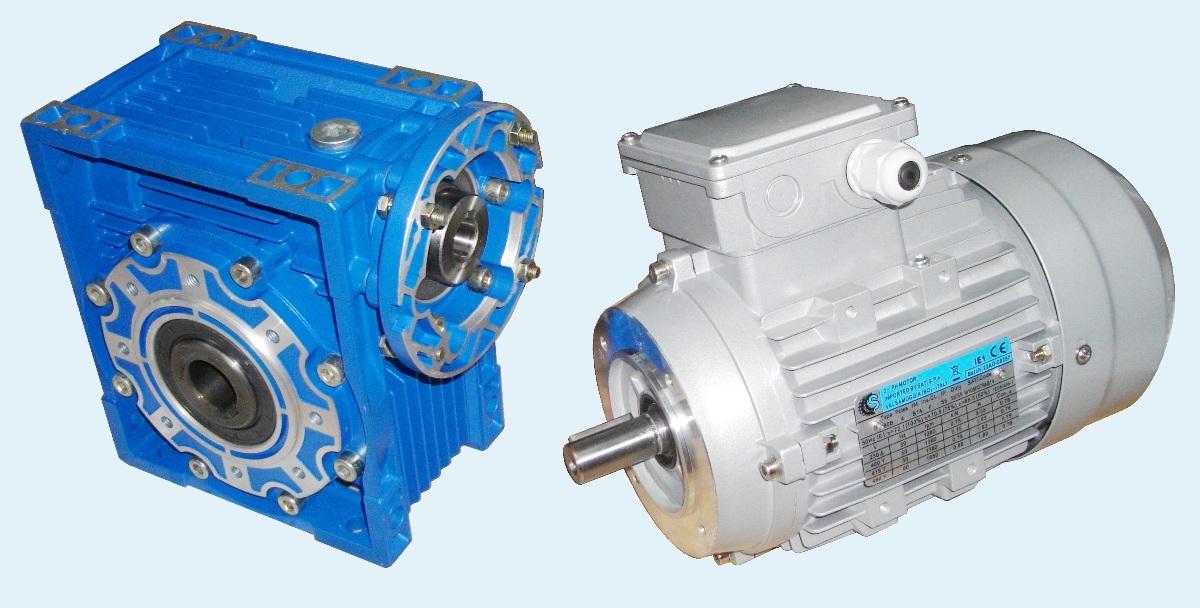

Одноступінчастий черв'ячний редукор SATI VP 075 / KPD-DRIVE JRSTD75 / NMRV075
Міжвісьова відстань 75 мм, корпус редуктора виготовлений з алюмінія. Передаточні числа від 5 до 100. Редуктор оснащений фланцем для приєднання електродвигуна, додатко можна придбати односторонній та двохсторонній вихідний вал, вихідний фланець, моментний важіль.

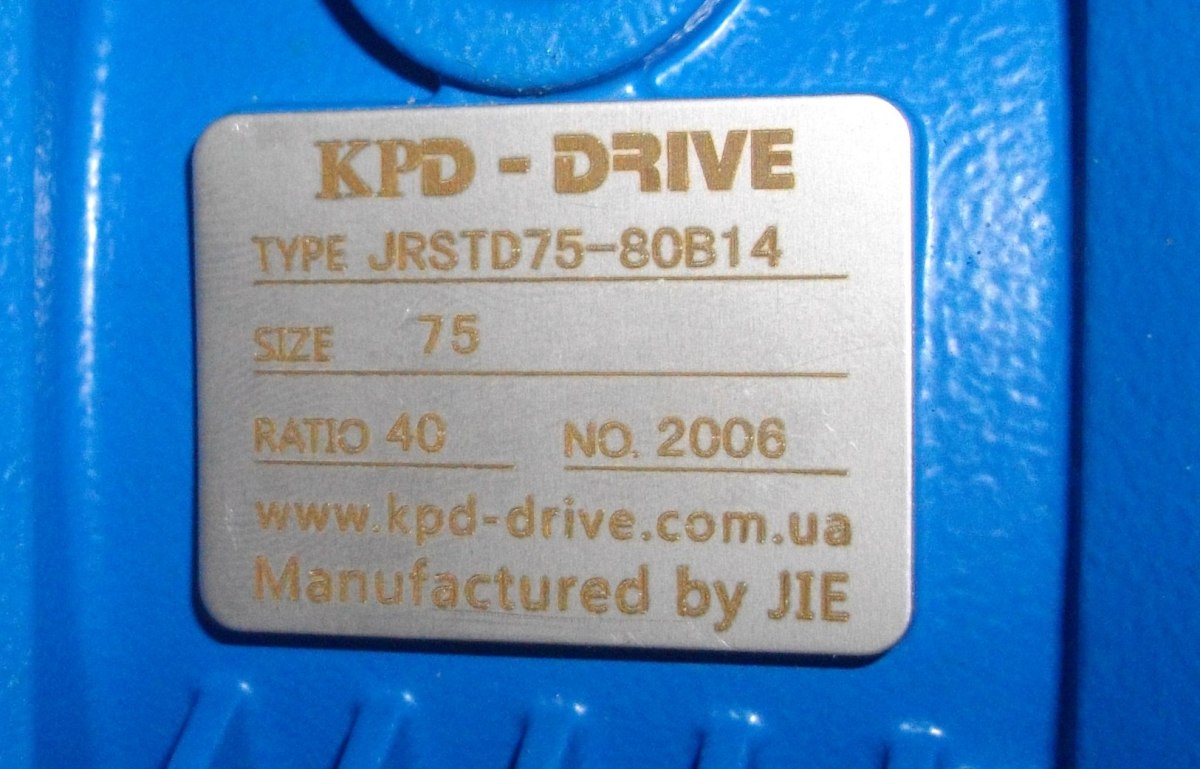

Розміри та маркування черв'ячних редукторів KPD-drive jrstd75 / Sati VP 075 / nmrv 075
| маркування SATI | маркування | i | фланець електродвигуна | допоміжне маркування |
| VP07507P09 | JRSTD75-90B5 ratio 7.5 | 1/7,5 | 90 B5 | NMRV-P075-7.5-90B5, NMRV075-1:7.5, CMRV-075-007-90B5, NMRV/075 i=7.5, NMRV-P 075 i=7.50, JRSTD75-90B5 ratio 7.5 |
| VP07507P10 | JRSTD75-90B14 ratio 7.5 | 1/7.5 | 90 B14 | NMRV-P075-7.5-9014, CMRV-075-007-90B14, NMRV/075 i=7,5, JRSTD75-90B14 ratio 7.5 |
| VP07507P11 | JRSTD75-100B5 ratio 7.5 | 1/7.5 | 100/112 B5 | NMRV-P075-7.5-100B5, CMRV-075-007-100/112B5, NMRV/075 i=7,5, JRSTD75-100B5 ratio 7.5 |
| VP07507P12 | JRSTD75-100B14 ratio 7.5 | 1/7.5 | 100/112 B14 | NMRV-P075-7.5-100B14, CMRV-075-007-100/112B14, NMRV/075 i=7,5, JRSTD75-100B14 ratio 7.5 |
| VP07510P09 | JRSTD75-90B5 ratio 10 | 1/10 | 90 B5 | NMRV-P075-10-90B5, CMRV-075-010-90B5, NMRV/075 i=10, JRSTD75-90B5 ratio 10 |
| VP07510P10 | JRSTD75-90B14 ratio 10 | 1/10 | 90 B14 | NMRV-P075-10-90B14, CMRV-075-010-90B14, NMRV/075 i=10, NMRV-P 075 i=10.00, JRSTD75-90B14 ratio 10 |
| VP07510P11 | JRSTD75-100B5 ratio 10 | 1/10 | 100/112 B5 | NMRV-P075-10-100B5, CMRV-075-010-100/112B5, NMRV/075 i=10, JRSTD75-100B5 ratio 10 |
| VP07510P12 | JRSTD75-100B14 ratio 10 | 1/10 | 100/112 B14 | NMRV-P075-10-100B14, CMRV-075-010-100/112B14, NMRV/075 i=10, JRSTD75-100B14 ratio 10 |
| VP07515P07 | JRSTD75-80B5 ratio 15 | 1/15 | 80 B5 | NMRV-P075-15-80B5, CMRV-075-015-80B5, NMRV/075 i=15, NMRV-P 075 i=15.00, JRSTD75-80B5 ratio 15 |
| VP07515P08 | JRSTD75-80B14 ratio 15 | 1/15 | 80 B14 | NMRV-P075-15-80B14, CMRV-075-015-80B14, NMRV/075 i=15, JRSTD75-80B14 ratio 15 |
| VP07515P09 | JRSTD75-90B5 ratio 15 | 1/15 | 90 B5 | NMRV-P075-15-90B5, CMRV-075-015-90B5, NMRV/075 i=15, JRSTD75-90B5 ratio 15 |
| VP07515P10 | JRSTD75-90B14 ratio 15 | 1/15 | 90 B14 | NMRV-P075-15-90B14, CMRV-075-015-90B14, NMRV/075 i=15, JRSTD75-90B14 ratio 15 |
| VP07515P11 | JRSTD75-100B5 ratio 15 | 1/15 | 100/112 B5 | NMRV-P075-15-100B5, CMRV-075-015-100/112B5, NMRV/075 i=15, JRSTD75-100B5 ratio 15 |
| VP07515P12 | JRSTD75-100B14 ratio 15 | 1/15 | 100/112 B14 | NMRV-P075-15-100B14, CMRV-075-015-100/112B14, NMRV/075 i=15, JRSTD75-100B14 ratio 15 |
| VP07520P07 | JRSTD75-80B5 ratio 20 | 1/20 | 80 B5 | NMRV-P075-20-80B5, CMRV-075-020-80B5, NMRV/075 i=20, NMRV-P 075 i=20.00, JRSTD75-80B5 ratio 20 |
| VP07520P08 | JRSTD75-80B14 ratio 20 | 1/20 | 80 B14 | NMRV-P075-20-80B14, CMRV-075-020-80B14, NMRV/075 i=20, JRSTD75-80B14 ratio 20 |
| VP07520P09 | JRSTD75-90B5 ratio 20 | 1/20 | 90 B5 | NMRV-P075-20-90B5, CMRV-075-020-90B5, NMRV/075 i=20, JRSTD75-90B5 ratio 20 |
| VP07520P10 | JRSTD75-90B14 ratio 20 | 1/20 | 90 B14 | NMRV-P075-20-90B14, CMRV-075-020-90B14, NMRV/075 i=20, JRSTD75-90B14 ratio 20 |
| VP07520P11 | JRSTD75-100B5 ratio 20 | 1/20 | 100/112 B5 | NMRV-P075-20-100B5, CMRV-075-020-100/112B5, NMRV/075 i=20, JRSTD75-100B5 ratio 20 |
| VP07520P12 | JRSTD75-100B14 ratio 20 | 1/20 | 100/112 B14 | NMRV-P075-20-100B14, CMRV-075-020-100/112B14, NMRV/075 i=20, JRSTD75-100B14 ratio 20 |
| VP07525P07 | JRSTD75-80B5 ratio 25 | 1/25 | 80 B5 | NMRV-P075-25-80B5, CMRV-075-025-80B5, NMRV/075 i=25, NMRV-P 075 i=25.00, JRSTD75-80B5 ratio 25 |
| VP07525P08 | JRSTD75-80B14 ratio 25 | 1/25 | 80 B14 | NMRV-P075-25-80B14, CMRV-075-025-80B14, NMRV/075 i=25, JRSTD75-80B14 ratio 25 |
| VP07525P09 | JRSTD75-90B5 ratio 25 | 1/25 | 90 B5 | NMRV-P075-25-90B5, CMRV-075-025-90B5, NMRV/075 i=25, JRSTD75-90B5 ratio 25 |
| VP07525P10 | JRSTD75-90B14 ratio 25 | 1/25 | 90 B14 | NMRV-P075-25-90B14, CMRV-075-025-90B14, NMRV/075 i=25, JRSTD75-90B14 ratio 25 |
| VP07525P11 | JRSTD75-100B5 ratio 25 | 1/25 | 100/112 B5 | NMRV-P075-25-100B5, CMRV-075-025-100/112B5, NMRV/075 i=25, JRSTD75-100B5 ratio 25 |
| VP07525P12 | JRSTD75-100B14 ratio 25 | 1/25 | 100/112 B14 | NMRV-P075-25-100B14, CMRV-075-025-100/112B14, NMRV/075 i=25, JRSTD75-100B5 ratio 25 |
| VP07530P07 | JRSTD75-80B5 ratio 30 | 1/30 | 80 B5 | NMRV-P075-30-80B5, CMRV-075-030-80B5, NMRV/075 i=30, NMRV-P 075 i=30.00, JRSTD75-80B5 ratio 30 |
| VP07530P08 | JRSTD75-80B14 ratio 30 | 1/30 | 80 B14 | NMRV-P075-30-80B14, CMRV-075-030-80B14, NMRV/075 i=30, JRSTD75-80B14 ratio 30 |
| VP07530P09 | JRSTD75-90B5 ratio 30 | 1/30 | 90 B5 | NMRV-P075-30-90B5, CMRV-075-030-90B5, NMRV/075 i=30, JRSTD75-90B5 ratio 30 |
| VP07530P10 | JRSTD75-90B14 ratio 30 | 1/30 | 90 B14 | NMRV-P075-30-90B14, CMRV-075-030-90B14, NMRV/075 i=30, JRSTD75-90B14 ratio 30 |
| VP07530P11 | JRSTD75-100B5 ratio 30 | 1/30 | 100/112 B5 | NMRV-P075-30-100B5, CMRV-075-030-100/112B5, NMRV/075 i=30, JRSTD75-100B5 ratio 30 |
| VP07530P12 | JRSTD75-100B14 ratio 30 | 1/30 | 100/112 B14 | NMRV-P075-30-100B14, CMRV-075-030-100/112B14, NMRV/075 i=30, JRSTD75-100B14 ratio 30 |
| VP07540P05 | JRSTD75-71B5 ratio 40 | 1/40 | 71 B5 | NMRV-P075-40-71B5, CMRV-075-040-71B5, NMRV/075 i=40, NMRV-P 075 i=40.00, JRSTD75-71B5 ratio 40 |
| VP07540P07 | JRSTD75-80B5 ratio 40 | 1/40 | 80 B5 | NMRV-P075-40-80B5, CMRV-075-040-80B5, NMRV/075 i=40, JRSTD75-80B5 ratio 40 |
| VP07540P08 | JRSTD75-80B14 ratio 40 | 1/40 | 80 B14 | NMRV-P075-40-80B14, CMRV-075-040-80B14, NMRV/075 i=40, JRSTD75-80B14 ratio 40 |
| VP07540P09 | JRSTD75-90B5 ratio 40 | 1/40 | 90 B5 | NMRV-P075-40-90B5, CMRV-075-040-90B5, NMRV/075 i=40, JRSTD75-90B5 ratio 40 |
| VP07540P10 | JRSTD75-90B14 ratio 40 | 1/40 | 90 B14 | NMRV-P075-40-90B14, CMRV-075-040-90B14, NMRV/075 i=40, JRSTD75-90B14 ratio 40 |
| VP07550P05 | JRSTD75-71B5 ratio 50 | 1/50 | 71 B5 | NMRV-P075-50-71B5, CMRV-075-050-71B5, NMRV/075 i=50, NMRV-P 075 i=50.00, JRSTD75-71B5 ratio 50 |
| VP07550P07 | JRSTD75-80B5 ratio 50 | 1/50 | 80 B5 | NMRV-P075-50-80B5, CMRV-075-050-80B5, NMRV/075 i=50, JRSTD75-80B5 ratio 50 |
| VP07550P08 | JRSTD75-80B14 ratio 50 | 1/50 | 80 B14 | NMRV-P075-50-80B14, CMRV-075-050-80B14, NMRV/075 i=50, JRSTD75-80B14 ratio 50 |
| VP07550P09 | JRSTD75-90B5 ratio 50 | 1/50 | 90 B5 | NMRV-P075-50-90B5, CMRV-075-050-90B5, NMRV/075 i=50, JRSTD75-90B5 ratio 50 |
| VP07550P10 | JRSTD75-90B14 ratio 50 | 1/50 | 90 B14 | NMRV-P075-50-90B14, CMRV-075-050-90B14, NMRV/075 i=50, JRSTD75-90B14 ratio 50 |
| VP07560P05 | JRSTD75-71B5 ratio 60 | 1/60 | 71 B5 | NMRV-P075-60-71B5, CMRV-075-060-71B5, NMRV/075 i=60, NMRV-P 075 i=60.00, JRSTD75-71B5 ratio 60 |
| VP07560P07 | JRSTD75-80B5 ratio 60 | 1/60 | 80 B5 | NMRV-P075-60-80B5, CMRV-075-060-80B5, NMRV/075 i=60, JRSTD75-80B5 ratio 60 |
| VP07560P08 | JRSTD75-80B14 ratio 60 | 1/60 | 80 B14 | NMRV-P075-60-80B14, CMRV-075-060-80B14, NMRV/075 i=60, JRSTD75-80B14 ratio 60 |
| VP07560P09 | JRSTD75-90B5 ratio 60 | 1/60 | 90 B5 | NMRV-P075-60-90B5, CMRV-075-060-90B5, NMRV/075 i=60, JRSTD75-90B5 ratio 60 |
| VP07560P10 | JRSTD75-90B14 ratio 60 | 1/60 | 90 B14 | NMRV-P075-60-90B14, CMRV-075-060-90B14, NMRV/075 i=60, JRSTD75-90B14 ratio 60 |
| VP07580P05 | JRSTD75-71B5 ratio 80 | 1/80 | 71 B5 | NMRV-P075-80-71B5, CMRV-075-080-71B5, NMRV/075 i=80, NMRV-P 075 i=80.00, JRSTD75-71B5 ratio 80 |
| VP07580P07 | JRSTD75-80B5 ratio 80 | 1/80 | 80 B5 | NMRV-P075-80-80B5, CMRV-075-080-80B5, NMRV/075 i=80, JRSTD75-80B5 ratio 80 |
| VP07580P08 | JRSTD75-80B14 ratio 80 | 1/80 | 80 B14 | NMRV-P075-80-80B14, CMRV-075-080-80B14, NMRV/075 i=80, JRSTD75-80B14 ratio 80 |
| VP075X1P05 | JRSTD75-71B5 ratio 100 | 1/100 | 71 B5 | NMRV-P075-100-71B5, CMRV-075-100-71B5, NMRV/075 i=100, NMRV-P 075 i=100.00, JRSTD75-71B5 ratio 100 |
| VP075X1P07 | JRSTD75-80B5 ratio 100 | 1/100 | 80 B5 | NMRV-P075-100-80B5, CMRV-075-100-80B5, NMRV/075 i=100, JRSTD75-80B5 ratio 100 |
| VP075X1P08 | JRSTD75-80B14 ratio 100 | 1/100 | 80 B14 | NMRV-P075-100-80B14, CMRV-075-100-80B14, NMRV/075 i=100, JRSTD75-80B14 ratio 100 |
Раозміри фланців електродвигунів до редуктора NMRV 075
| габарит електродвигуна | вал D | фланець P | кріпильні отвори M | центруючий буртик N | варіанти маркування фланця |
| мм | мм | мм | мм | ||
| IEC 71 B5 (PAM71B5) | 14 | 160 | 130 | 110 | PAM14/160, 1601428 |
| IEC 80 B5 (PAM80B5) | 19 | 200 | 165 | 130 | PAM19/200, 2001928 |
| IEC 80 B14 (PAM80B14) | 19 | 120 | 100 | 80 | PAM19/120, 1201928 |
| IEC 90 B5 (PAM90B5) | 24 | 200 | 165 | 130 | PAM24/200, 2002428 |
| IEC 90 B14 (PAM90B14) | 24 | 140 | 115 | 95 | PAM24/120, 1202428 |
| IEC 100 B5 (PAM100B5) | 28 | 250 | 215 | 180 | PAM28/250, 2502828 |
| IEC 100 B14 (PAM100B14) | 28 | 160 | 130 | 110 | PAM28/160, 1602828 |
| IEC 112 B5 (PAM112B5) | 28 | 250 | 215 | 180 | PAM28/250, 2502828 |
| IEC 112 B14 (PAM112B14) | 28 | 160 | 130 | 110 | PAM28/160, 1602828 |
На сторінках нашого сайта ви можете завантажити PDF-каталоги черв'ячних редукторів, єлектродвигунів та допоміжну техгічну літературу. Звертайтесь до наших інженерів і ви зможете замовити перевірочний розрахунок еластичних муфт, розрахунок пасових передач та розрахунок ланцюгових передач, підбір мотор-редукторів за технічним завданням.
