УкраїнськаШкив клинового ремня SPZ

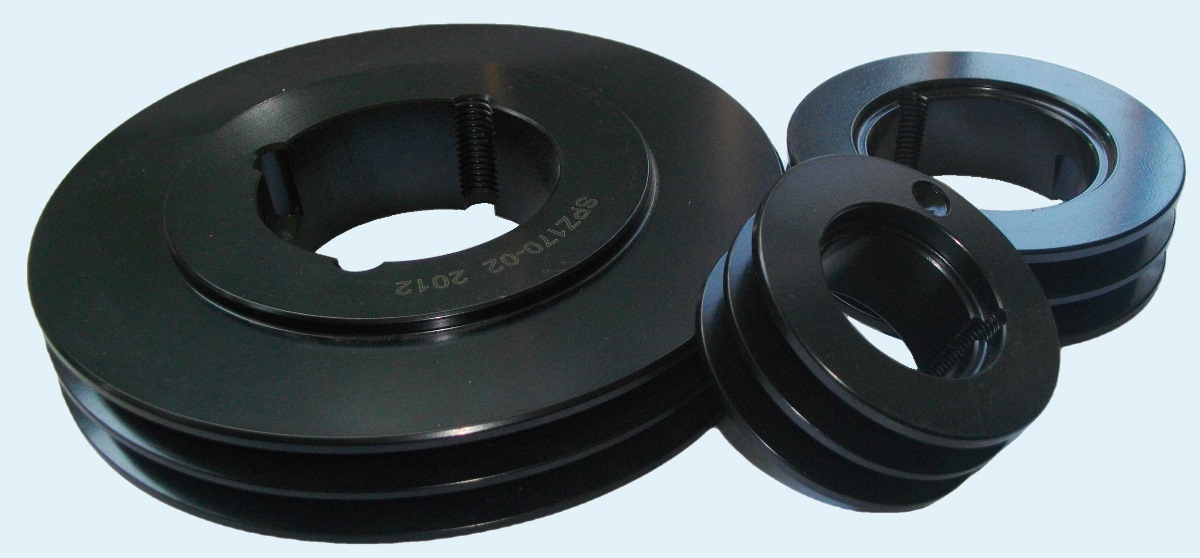

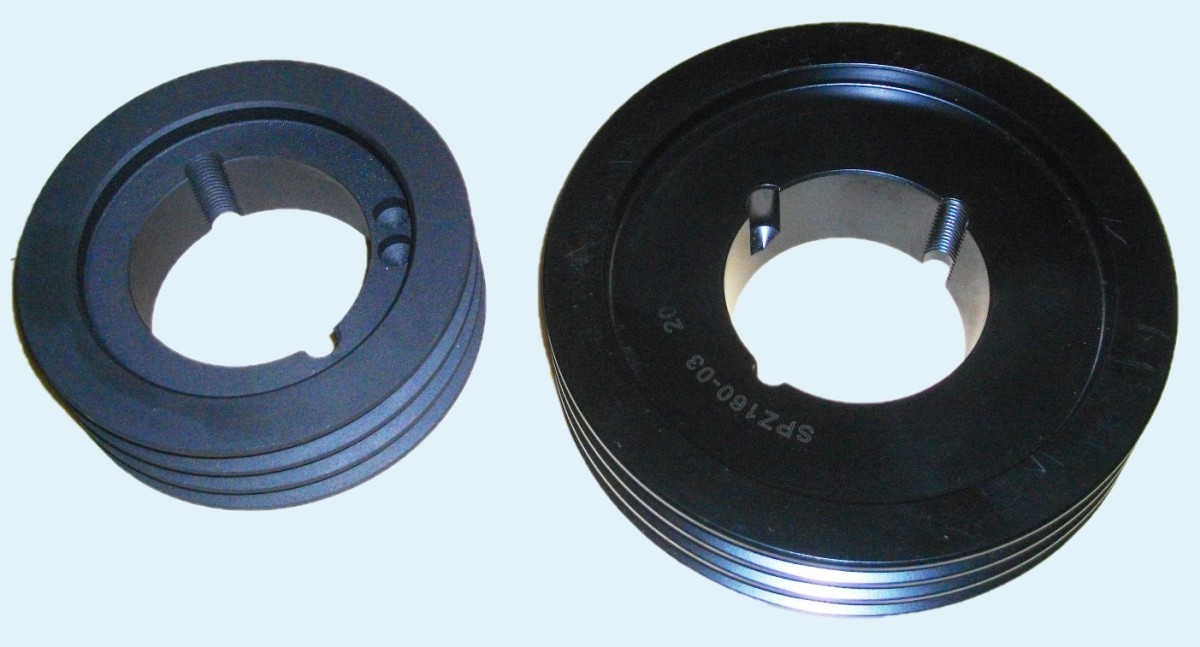

Клиновые шкивы Sati SPZ с установкой на коническую монтажную втулку.
Размеры - шкивы SPZ на 1 ручей
| расчётный диаметр, мм | маркировка | артикул | внешний диаметр, мм | вспомогательная маркировка |
| 50 | SATI - SPZ50-01 (TB 1008) | ZT00501 | 54 | SPZ50x1 (TB 1008), PHP 1SPZ50TB, 1-SPZ-50 |
| 56 | SATI - SPZ56-01 (TB 1008) | ZT00561 | 60 | SPZ56x1 (TB 1008), PHP 1SPZ56TB, 1-SPZ-56 |
| 60 | SATI - SPZ60-01 (TB 1008) | ZT00601 | 64 | SPZ60x1 (TB 1008), PHP 1SPZ60TB, 1-SPZ-60 |
| 63 | SATI - SPZ63-01 (TB 1108) | ZT00631 | 67 | SPZ63x1 (TB 1108), PHP 1SPZ63TB, 1-SPZ-63 |
| 67 | SATI - SPZ67-01 (TB 1108) | ZT00671 | 71 | SPZ67x1 (TB 1108), PHP 1SPZ67TB, 1-SPZ-67 |
| 71 | SATI - SPZ71-01 (TB 1108) | ZT00711 | 75 | SPZ71x1 (TB 1108), PHP 1SPZ71TB, 1-SPZ-71 |
| 75 | SATI - SPZ75-01 (TB 1108) | ZT00751 | 79 | SPZ75x1 (TB 1108), PHP 1SPZ75TB, 1-SPZ-75 |
| 80 | SATI - SPZ80-01 (TB 1210) | ZT00801 | 84 | SPZ80x1 (TB 1210), PHP 1SPZ80TB, 1-SPZ-80 |
| 85 | SATI - SPZ85-01 (TB 1210) | ZT00851 | 89 | SPZ85x1 (TB 1210), PHP 1SPZ85TB, 1-SPZ-85 |
| 90 | SATI - SPZ90-01 (TB 1210) | ZT00901 | 94 | SPZ90x1 (TB 1210), PHP 1SPZ90TB, 1-SPZ-90 |
| 95 | SATI - SPZ95-01 (TB 1210) | ZT00951 | 99 | SPZ95x1 (TB 1210), PHP 1SPZ95TB, 1-SPZ-95 |
| 100 | SATI - SPZ100-01 (TB 1210) | ZT01001 | 104 | SPZ100x1 (TB 1210), PHP 1SPZ100TB, 1-SPZ-100 |
| 106 | SATI - SPZ106-01 (TB 1610) | ZT01061 | 110 | SPZ106x1 (TB 1610), PHP 1SPZ106TB, 1-SPZ-106 |
| 112 | SATI - SPZ112-01 (TB 1610) | ZT01121 | 116 | SPZ112x1 (TB 1610), PHP 1SPZ112TB, 1-SPZ-112 |
| 118 | SATI - SPZ118-01 (TB 1610) | ZT01181 | 122 | SPZ118x1 (TB 1610), PHP 1SPZ118TB, 1-SPZ-118 |
| 125 | SATI - SPZ125-01 (TB 1610) | ZT01251 | 129 | SPZ125x1 (TB 1610), PHP 1SPZ125TB, 1-SPZ-125 |
| 132 | SATI - SPZ132-01 (TB 1610) | ZT01321 | 136 | SPZ132x1 (TB 1610), PHP 1SPZ132TB, 1-SPZ-132 |
| 140 | SATI - SPZ140-01 (TB 1610) | ZT01401 | 144 | SPZ140x1 (TB 1610), PHP 1SPZ140TB, 1-SPZ-140 |
| 150 | SATI - SPZ150-01 (TB 1610) | ZT01501 | 154 | SPZ150x1 (TB 1610), PHP 1SPZ150TB, 1-SPZ-150 |
| 160 | SATI - SPZ160-01 (TB 1610) | ZT01601 | 164 | SPZ160x1 (TB 1610), PHP 1SPZ160TB, 1-SPZ-160 |
| 170 | SATI - SPZ170-01 (TB 1610) | ZT01701 | 174 | SPZ170x1 (TB 1610), PHP 1SPZ170TB, 1-SPZ-170 |
| 180 | SATI - SPZ180-01 (TB 1610) | ZT01801 | 184 | SPZ180x1 (TB 1610), PHP 1SPZ180TB, 1-SPZ-180 |
| 190 | SATI - SPZ190-01 (TB 2012) | ZT01901 | 194 | SPZ190x1 (TB 2012), PHP 1SPZ190TB, 1-SPZ-190 |
| 200 | SATI - SPZ200-01 (TB 2012) | ZT02001 | 204 | SPZ200x1 (TB 2012), PHP 1SPZ200TB, 1-SPZ-200 |
| 212 | SATI - SPZ212-01 (TB 2012) | ZT02121 | 216 | SPZ212x1 (TB 2012), PHP 1SPZ212TB, 1-SPZ-212 |
| 224 | SATI - SPZ224-01 (TB 2012) | ZT02241 | 228 | SPZ224x1 (TB 2012), PHP 1SPZ224TB, 1-SPZ-224 |
| 250 | SATI - SPZ250-01 (TB 2012) | ZT02501 | 254 | SPZ250x1 (TB 2012), PHP 1SPZ250TB, 1-SPZ-250 |
| 280 | SATI - SPZ280-01 (TB 2012) | ZT02801 | 284 | SPZ280x1 (TB 2012), PHP 1SPZ280TB, 1-SPZ-280 |
| 300 | SATI - SPZ280-01 (TB 2012) | ZT03001 | 304 | SPZ315x1 (TB 2012), PHP 1SPZ315TB, 1-SPZ-300 |
| 315 | SATI - SPZ315-01 (TB 2012) | ZT03151 | 319 | SPZ315x1 (TB 2012), PHP 1SPZ315TB, 1-SPZ-315 |
| 355 | SATI - SPZ355-01 (TB 2012) | ZT03551 | 359 | SPZ315x1 (TB 2012), PHP 1SPZ315TB, 1-SPZ-355 |
| 400 | SATI - SPZ400-01 (TB 2012) | ZT04001 | 404 | SPZ400x1 (TB 2012), PHP 1SPZ400TB, 1-SPZ-400 |
| 450 | SATI - SPZ450-01 (TB 2517) | ZT04501 | 454 | SPZ450x1 (TB 2517), PHP 1SPZ450TB, 1-SPZ-450 |
| 500 | SATI - SPZ500-01 (TB 2517) | ZT05001 | 504 | SPZ500x1 (TB 2517), PHP 1SPZ500TB, 1-SPZ-500 |
Размеры - шкивы SPZ на 2 ручья
| расчётный диаметр, мм | маркировка | артикул | внешний диаметр, мм | вспомогательная маркировка |
| 50 | SATI - SPZ50-02 (TB 1008) | ZT00502 | 54 | SPZ50x2 (TB 1008), PHP 2SPZ50TB |
| 56 | SATI - SPZ56-02 (TB 1008) | ZT00562 | 60 | SPZ56x2 (TB 1008), PHP 2SPZ56TB |
| 60 | SATI - SPZ60-02 (TB 1108) | ZT00602 | 64 | SPZ60x2 (TB 1108), PHP 2SPZ60TB |
| 63 | SATI - SPZ63-02 (TB 1108) | ZT00632 | 67 | SPZ63x2 (TB 1108), PHP 2SPZ63TB |
| 67 | SATI - SPZ67-02 (TB 1108) | ZT00672 | 71 | SPZ67x2 (TB 1108), PHP 2SPZ67TB |
| 71 | SATI - SPZ71-02 (TB 1108) | ZT00712 | 75 | SPZ71x2 (TB 1108), PHP 2SPZ71TB |
| 75 | SATI - SPZ75-02 (TB 1210) | ZT00752 | 79 | SPZ75x2 (TB 1210), PHP 2SPZ75TB |
| 80 | SATI - SPZ80-02 (TB 1210) | ZT00802 | 84 | SPZ80x2 (TB 1210), PHP 2SPZ80TB |
| 85 | SATI - SPZ85-02 (TB 1610) | ZT00852 | 89 | SPZ85x2 (TB 1610), PHP 2SPZ85TB |
| 90 | SATI - SPZ90-02 (TB 1610) | ZT00902 | 94 | SPZ90x2 (TB 1610), PHP 2SPZ90TB |
| 95 | SATI - SPZ95-02 (TB 1610) | ZT00952 | 99 | SPZ95x2 (TB 1610), PHP 2SPZ95TB |
| 100 | SATI - SPZ100-02 (TB 1610) | ZT01002 | 104 | SPZ100x2 (TB 1610), PHP 2SPZ100TB |
| 106 | SATI - SPZ106-02 (TB 1610) | ZT01062 | 110 | SPZ106x2 (TB 1610), PHP 2SPZ106TB |
| 112 | SATI - SPZ112-02 (TB 1610) | ZT01122 | 116 | SPZ112x2 (TB 1610), PHP 2SPZ112TB |
| 118 | SATI - SPZ118-02 (TB 1610) | ZT01182 | 122 | SPZ118x2 (TB 1610), PHP 2SPZ118TB |
| 125 | SATI - SPZ125-02 (TB 1610) | ZT01252 | 129 | SPZ125x2 (TB 1610), PHP 2SPZ125TB |
| 132 | SATI - SPZ132-02 (TB 1610) | ZT01322 | 136 | SPZ132x2 (TB 1610), PHP 2SPZ132TB |
| 140 | SATI - SPZ140-02 (TB 1610) | ZT01402 | 144 | SPZ140x2 (TB 1610), PHP 2SPZ140TB |
| 150 | SATI - SPZ150-02 (TB 2012) | ZT01502 | 154 | SPZ150x2 (TB 2012), PHP 2SPZ150TB |
| 160 | SATI - SPZ160-02 (TB 2012) | ZT01602 | 164 | SPZ160x2 (TB 2012), PHP 2SPZ160TB |
| 170 | SATI - SPZ170-02 (TB 2012) | ZT01702 | 174 | SPZ170x2 (TB 2012), PHP 2SPZ170TB |
| 180 | SATI - SPZ180-02 (TB 2012) | ZT01802 | 184 | SPZ180x2 (TB 2012), PHP 2SPZ180TB |
| 190 | SATI - SPZ190-02 (TB 2012) | ZT01902 | 194 | SPZ190x2 (TB 2012), PHP 2SPZ190TB |
| 200 | SATI - SPZ200-02 (TB 2012) | ZT02002 | 204 | SPZ200x2 (TB 2012), PHP 2SPZ200TB |
| 224 | SATI - SPZ224-02 (TB 2012) | ZT02242 | 228 | SPZ224x2 (TB 2012), PHP 2SPZ224TB |
| 250 | SATI - SPZ250-02 (TB 2012) | ZT02502 | 254 | SPZ250x2 (TB 2012), PHP 2SPZ250TB |
| 280 | SATI - SPZ280-02 (TB 2012) | ZT02802 | 284 | SPZ280x2 (TB 2012), PHP 2SPZ280TB |
| 315 | SATI - SPZ315-02 (TB 2012) | ZT03152 | 319 | SPZ300x2 (TB 2012), PHP 2SPZ300TB |
| 355 | SATI - SPZ355-02 (TB 2012) | ZT03552 | 359 | SPZ315x2 (TB 2012), PHP 2SPZ315TB |
| 400 | SATI - SPZ400-02 (TB 2517) | ZT04002 | 404 | SPZ400x2 (TB 2517), PHP 2SPZ400TB |
| 450 | SATI - SPZ450-02 (TB 2517) | ZT04502 | 454 | SPZ450x2 (TB 2517), PHP 2SPZ450TB |
Размеры - шкивы SPZ на 3 ручья
| расчётный диаметр, мм | маркировка | артикул | внешний диаметр, мм | вспомогательная маркировка |
| 63 | SATI - SPZ63-03 (TB 1108) | ZT00633 | 67 | SPZ63x3 (TB 1108), PHP 3SPZ63TB |
| 67 | SATI - SPZ67-03 (TB 1108) | ZT00673 | 71 | SPZ67x3 (TB 1108), PHP 3SPZ67TB |
| 71 | SATI - SPZ71-03 (TB 1108) | ZT00713 | 75 | SPZ71x3 (TB 1108), PHP 3SPZ71TB |
| 75 | SATI - SPZ75-03 (TB 1210) | ZT00753 | 79 | SPZ75x3 (TB 1210), PHP 3SPZ75TB |
| 80 | SATI - SPZ80-03 (TB 1210) | ZT00803 | 84 | SPZ80x3 (TB 1210), PHP 3SPZ80TB |
| 85 | SATI - SPZ85-03 (TB 1610) | ZT00853 | 89 | SPZ85x3 (TB 1610), PHP 3SPZ85TB |
| 90 | SATI - SPZ90-03 (TB 1610) | ZT00903 | 94 | SPZ90x3 (TB 1610), PHP 3SPZ90TB |
| 95 | SATI - SPZ95-03 (TB 1610) | ZT00953 | 99 | SPZ95x3 (TB 1610), PHP 3SPZ95TB |
| 100 | SATI - SPZ100-03 (TB 1610) | ZT01003 | 104 | SPZ100x3 (TB 1610), PHP 3SPZ100TB |
| 106 | SATI - SPZ106-03 (TB 1610) | ZT01063 | 110 | SPZ106x3 (TB 1610), PHP 3SPZ106TB |
| 112 | SATI - SPZ112-03 (TB 2012) | ZT01123 | 116 | SPZ112x3 (TB 2012), PHP 3SPZ112TB |
| 118 | SATI - SPZ118-03 (TB 2012) | ZT01183 | 122 | SPZ118x3 (TB 2012), PHP 3SPZ118TB |
| 125 | SATI - SPZ125-03 (TB 2012) | ZT01253 | 129 | SPZ125x3 (TB 2012), PHP 3SPZ125TB |
| 132 | SATI - SPZ132-03 (TB 2012) | ZT01323 | 136 | SPZ132x3 (TB 2012), PHP 3SPZ132TB |
| 140 | SATI - SPZ140-03 (TB 2012) | ZT01403 | 144 | SPZ140x3 (TB 2012), PHP 3SPZ140TB |
| 150 | SATI - SPZ150-03 (TB 2012) | ZT01503 | 154 | SPZ150x3 (TB 2012), PHP 3SPZ150TB |
| 160 | SATI - SPZ160-03 (TB 2012) | ZT01603 | 164 | SPZ160x3 (TB 2012), PHP 3SPZ160TB |
| 170 | SATI - SPZ170-03 (TB 2012) | ZT01703 | 174 | SPZ170x3 (TB 2012), PHP 3SPZ170TB |
| 180 | SATI - SPZ180-03 (TB 2012) | ZT01803 | 184 | SPZ180x3 (TB 2012), PHP 3SPZ180TB |
| 190 | SATI - SPZ190-03 (TB 2012) | ZT01903 | 194 | SPZ190x3 (TB 2012), PHP 3SPZ190TB |
| 200 | SATI - SPZ200-03 (TB 2012) | ZT02003 | 204 | SPZ200x3 (TB 2012), PHP 3SPZ200TB |
| 224 | SATI - SPZ224-03 (TB 2012) | ZT02243 | 228 | SPZ224x3 (TB 2012), PHP 3SPZ224TB |
| 250 | SATI - SPZ250-03 (TB 2012) | ZT02503 | 254 | SPZ250x3 (TB 2012), PHP 3SPZ250TB |
| 280 | SATI - SPZ280-03 (TB 2517) | ZT02803 | 284 | SPZ280x3 (TB 2517), PHP 3SPZ280TB |
| 315 | SATI - SPZ315-03 (TB 2517) | ZT03153 | 319 | SPZ300x3 (TB 2517), PHP 3SPZ300TB |
| 355 | SATI - SPZ355-03 (TB 2517) | ZT03553 | 359 | SPZ315x3 (TB 2517), PHP 3SPZ315TB |
| 400 | SATI - SPZ400-03 (TB 2517) | ZT04003 | 404 | SPZ400x3 (TB 2517), PHP 3SPZ400TB |
| 450 | SATI - SPZ450-03 (TB 2517) | ZT04503 | 454 | SPZ450x3 (TB 2517), PHP 3SPZ450TB |
| 500 | SATI - SPZ500-03 (TB 2517) | ZT05003 | 504 | SPZ500x3 (TB 2517), PHP 3SPZ500TB |
| 630 | SATI - SPZ630-03 (TB 3020) | ZT06303 | 634 | SPZ630x3 (TB 3020), PHP 3SPZ630TB |
| 800 | SATI - SPZ800-03 (TB 3020) | ZT08003 | 804 | SPZ800x3 (TB 3020), PHP 3SPZ800TB |
