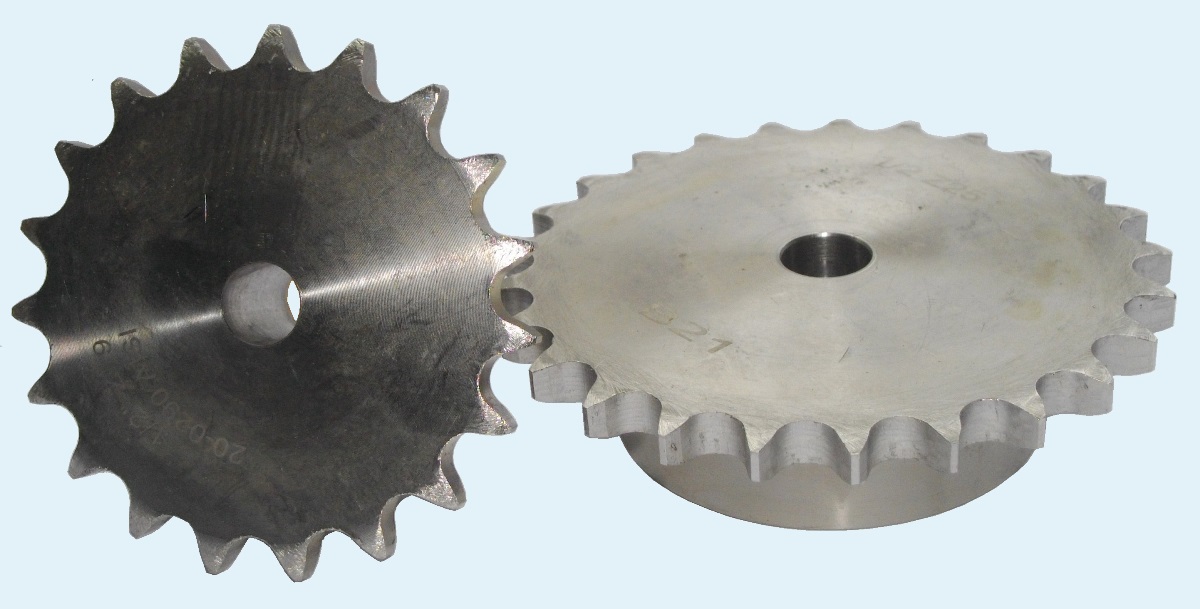

УкраїнськаНержавеющая звёздочка для цепи 08В1 (ПР12,7)
Основные размеры нержавеющих звёздочек для цепи 08В1SS / ПР-12,7-1820-2 и их обозначение
| артикул | Z зубья | De | Dp | d | D | |
| Sati PS09X12 | 12 | 53.0 | 49,07 | 33 | 10 | Stainless 1/2X5/16 Z=012 |
| Sati PS09X13 | 13 | 57.4 | 53,06 | 37 | 10 | Stainless 1/2X5/16 Z=013 |
| Sati PS09X14 | 14 | 61.8 | 57,07 | 41 | 10 | Stainless 1/2X5/16 Z=014 |
| Sati PS09X15 | 15 | 65.5 | 61,09 | 45 | 10 | Stainless 1/2X5/16 Z=015 |
| Sati PS09X16 | 16 | 69.5 | 65,10 | 50 | 12 | Stainless 1/2X5/16 Z=016 |
| Sati PS09X17 | 17 | 73.6 | 69,11 | 52 | 12 | Stainless 1/2X5/16 Z=017 |
| Sati PS09X18 | 18 | 77.8 | 73,14 | 56 | 12 | Stainless 1/2X5/16 Z=018 |
| Sati PS09X19 | 19 | 81.7 | 77,16 | 60 | 12 | Stainless 1/2X5/16 Z=019 |
| Sati PS09X20 | 20 | 85.8 | 81,19 | 64 | 12 | Stainless 1/2X5/16 Z=020 |
| Sati PS09X21 | 21 | 89.7 | 85,22 | 68 | 12 | Stainless 1/2X5/16 Z=021 |
| Sati PS09X22 | 22 | 93.8 | 89,24 | 70 | 12 | Stainless 1/2X5/16 Z=022 |
| Sati PS09X23 | 23 | 98.2 | 93,27 | 70 | 14 | Stainless 1/2X5/16 Z=023 |
| Sati PS09X24 | 24 | 101.8 | 97,29 | 70 | 14 | Stainless 1/2X5/16 Z=024 |
| Sati PS09X25 | 25 | 105.8 | 101,33 | 70 | 14 | Stainless 1/2X5/16 Z=025 |
| Sati PS09X26 | 26 | 110.0 | 105,36 | 70 | 16 | Stainless 1/2X5/16 Z=026 |
| Sati PS09X27 | 27 | 114.0 | 109,40 | 70 | 16 | Stainless 1/2X5/16 Z=027 |
| Sati PS09X30 | 30 | 126.1 | 121,50 | 90 | 16 | Stainless 1/2X5/16 Z=030 |
| Sati PS09X34 | 34 | 142.6 | 137,64 | 90 | 16 | Stainless 1/2X5/16 Z=034 |
| Sati PS09X38 | 38 | 158.6 | 153,80 | 90 | 16 | Stainless 1/2X5/16 Z=038 |
| Sati PS09X40 | 40 | 166.8 | 161,87 | 90 | 16 | Stainless 1/2X5/16 Z=040 |
